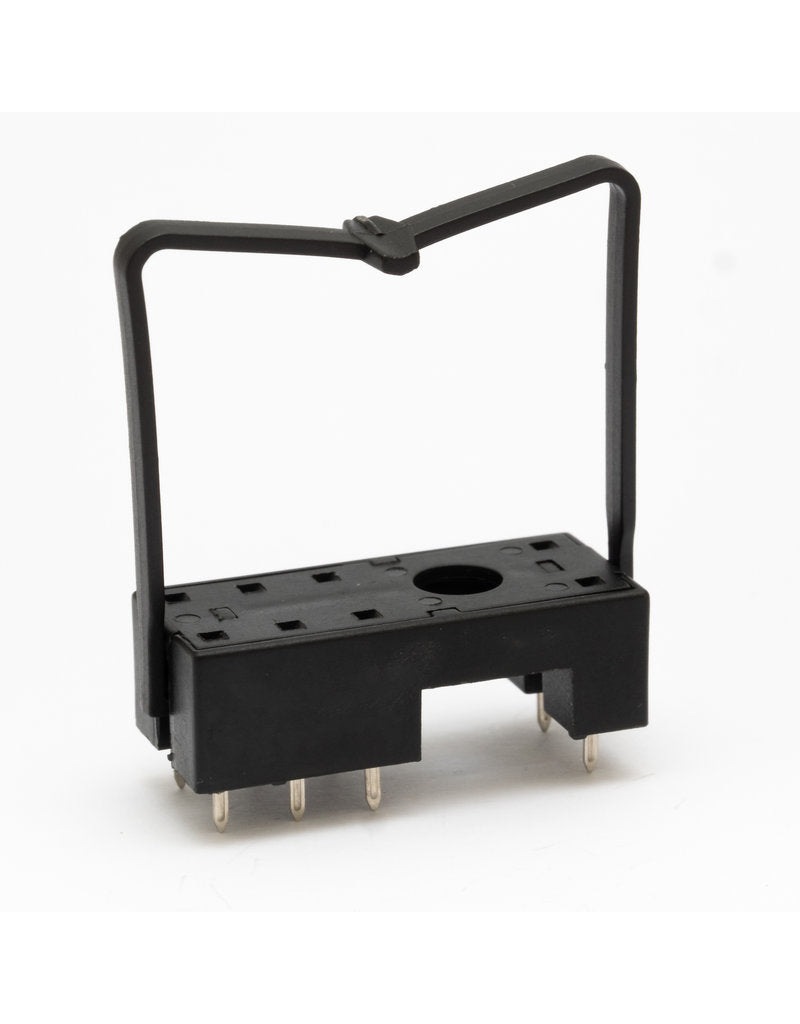

Elesta SRP-SGR2 PCB Socket for Relay Series SGR282ZK (variants 1 & 2)

Elesta SRP-SGR2 PCB Socket for Relay Series SGR282ZK (variants 1 & 2)



  • Available with metal or plastic hold down clip
  • Soldering tags for PCB
  • 2.5mm pinning
  • Rated current                           2x8A
  • Rated voltage                          300VAC
  • Test voltage coil/contacts        4000Veff
  • Insulation class (IEC 60664-1)  250VAC
  • Creepage resistance                CTI 250
  • Weight                                     approx.  4g
  • Ambient temperature              -40*C to +70*C
  • Packing unit                             100 pcs
  • Approvals                                 UL, cUL
  • UL File                                      E113714



                  Download Data Sheet SRP-SGR2 PCB Socket

                  Request a quote / Samples here




$2.10 USD
$2.10 USD
Sale Sold out
Shipping calculated at checkout.

Pricing by Quantity breakdown:

1-9 pieces = $1.00/ea

10-24 pieces = $etc.
View full details
