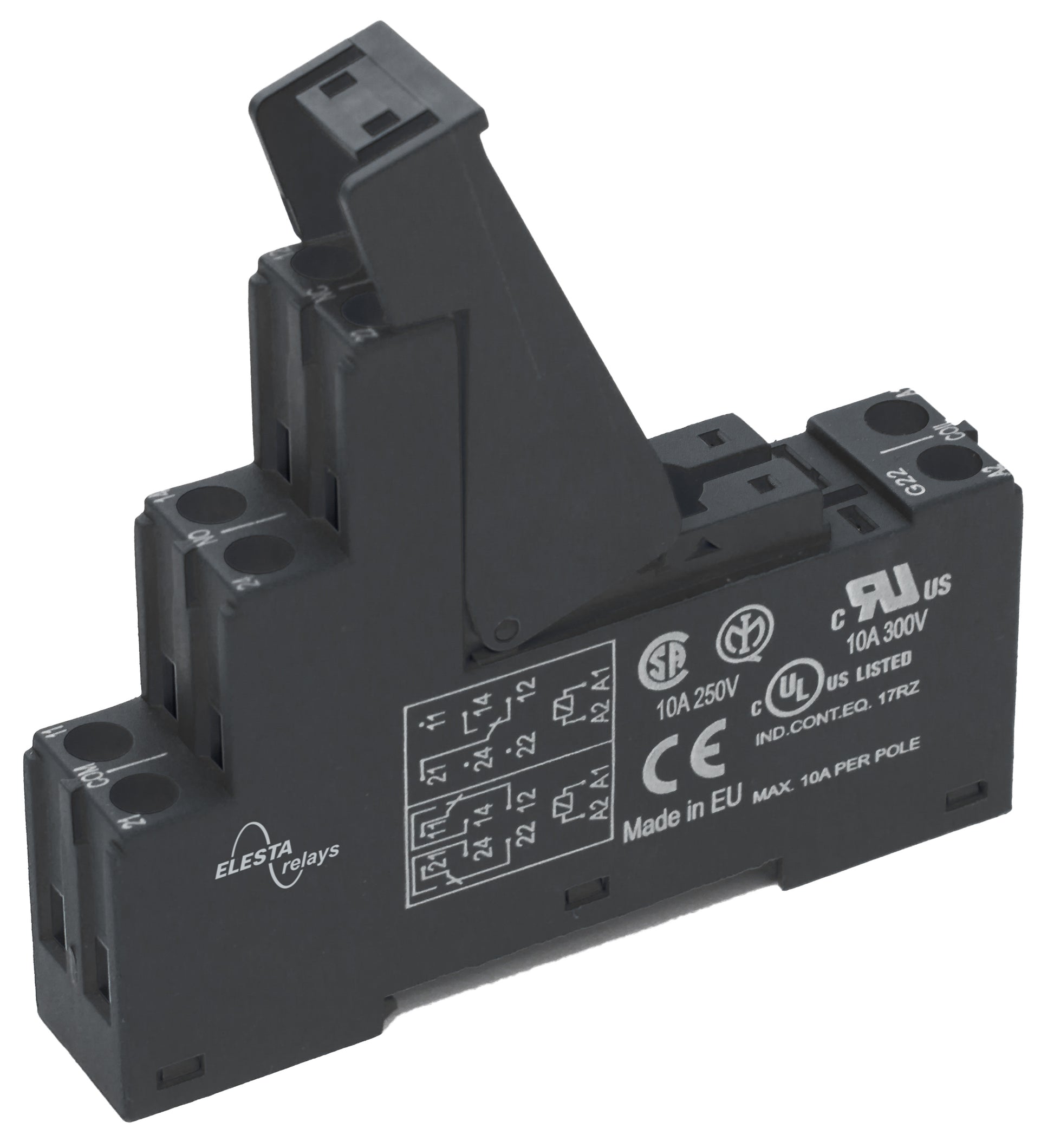

Elesta SRD-SGR2A KV2 DIN Rail Socket for Relay Series SGR282ZK (+Variants 1 & 2)

Elesta SRD-SGR2A KV2 DIN Rail Socket for Relay Series SGR282ZK (+Variants 1 & 2)



  • Comes with plastic hold down/ejection clip
  • Soldering tags for PCB
  • 2.5mm pinning
  • Mounting                                 35mm Mounting Rail (IEC60715)
  • Mounting                                 W/Central fastening srew M3
  • Torque                                      1.28 Nm
  • Rated current                           2x8A
  • Rated voltage                          250VAC
  • Test voltage coil/contacts        4000Veff
  • Insulation class (IEC 60664-1)  250VAC
  • Creepage resistance                CTI 250
  • Weight                                     approx.  46g
  • Ambient temperature              -40*C to +70*C
  • Pollution Degree                      2
  • Packing unit                             10 pcs
  • Approvals                                 UL, cUL
  • UL File                                      E135170



                  Request a quote / Samples here




$12.40 USD
$12.40 USD
Sale Sold out
Shipping calculated at checkout.

Pricing by Quantity breakdown:

1-9 pieces = $1.00/ea

10-24 pieces = $etc.
