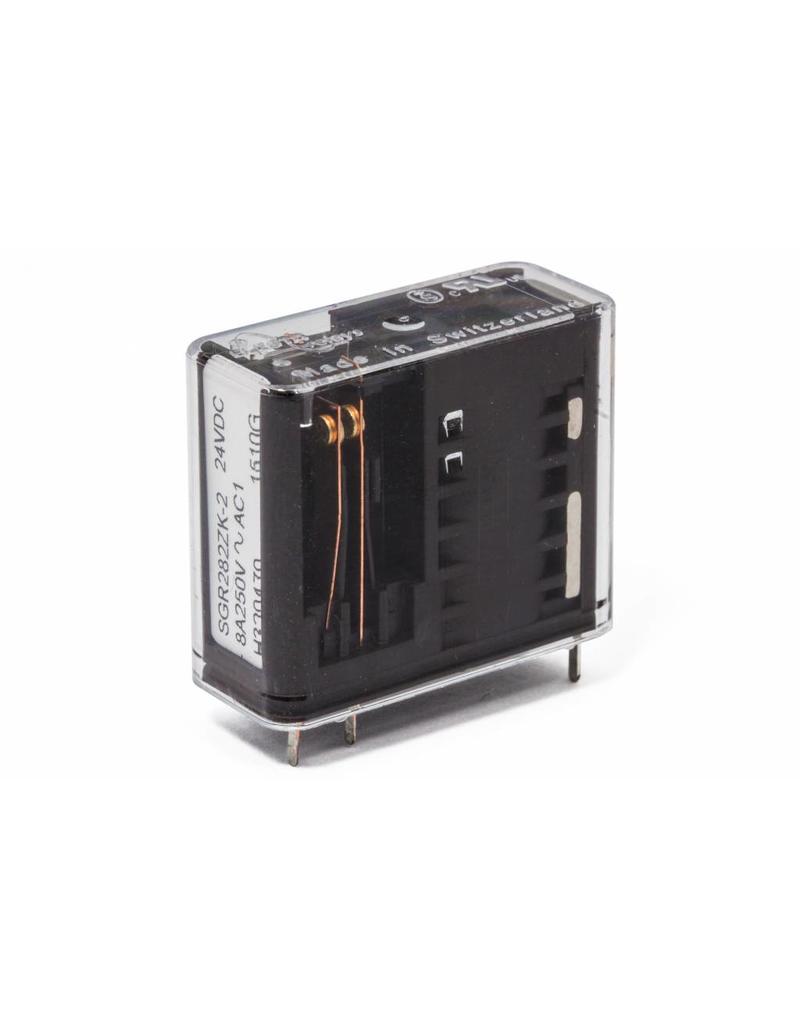

Elesta SGR282ZK

The Elesta SGR 282 ZK series is a classic 2-pole relay with forcibly guided contacts according to IEC 61810-3 in a changeover contact design with a 5.08 mm pitch. Also available as a contact variant with 1 NO contact and 1 NC contact. The positioning of the NO contacts and NC contacts (right and left) can be freely selected with the variant. The over-moulded coil construction is also suitable for applications in the ATEX area. Maximum system availability thanks to serrated crown contacts. Sensitive coil and load current range from 4mA to 8A.

Contact assembly: 2 CO or 1 NO + 1 NC

Switching current range: 4 mA - 8 A

Coil voltages: 3 VDC to 110 VDC (special coils on request)
